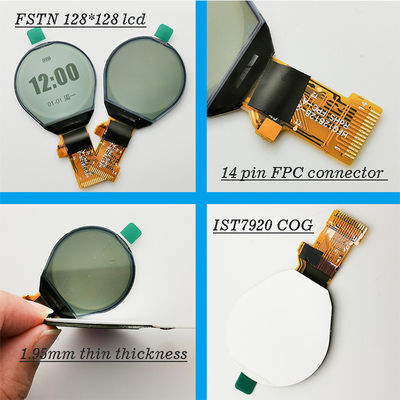

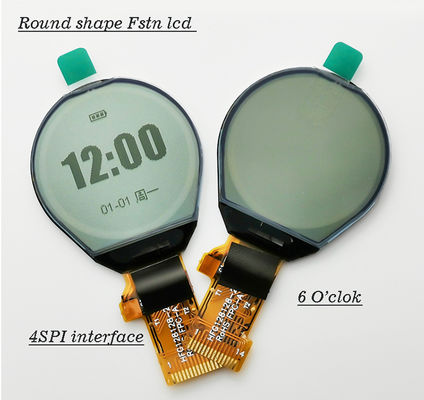

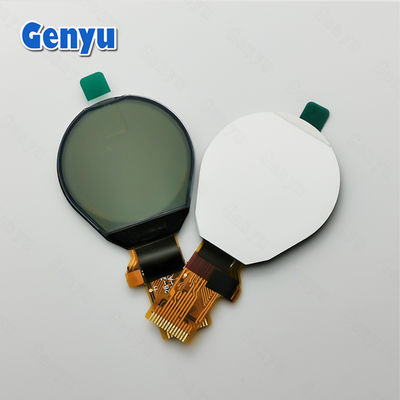

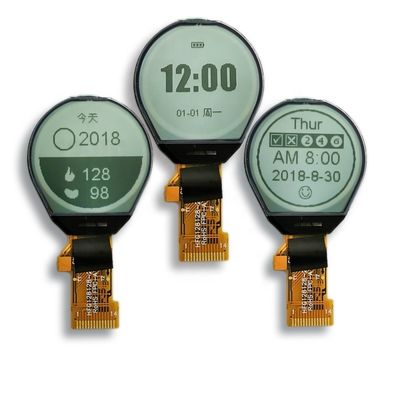

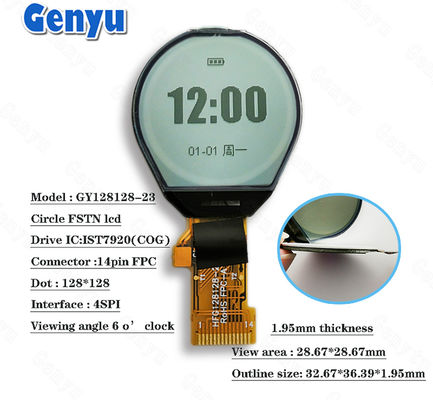

1.3inch GY128128-23 Round LCD Module 4-Spi FSTN Custom Monochrome Dot Matrix Clock COG LCD Screen 128x128 Circle Display

1. Features

(1) Display Type :   128x128 Dot Matrix LCD
(2) Viewing Angle :  6 O' clock LCD  SCREEN
(3) Control / Drive IC :  IST7920
(4) Display Mode : FSTN COG LCD
(5) Polarizer : Positive  Transflective

(6) Operating Temperature :  -10~+60℃

(7) Interface :  4SPI (14Pin FPC)

(8) Drive Method:1/28D 1/10B Vlcd=12v Vdd=3.3v

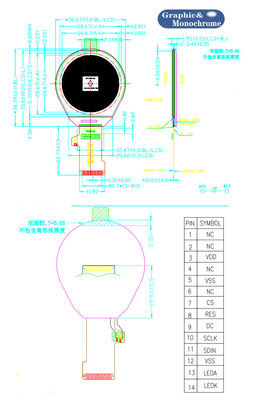

1. Module Size: 32.67*36.39*1.95mm mm

2. View Area: 28.67*28.67mmmm

COG LCD Screen, Dot Matrix LCD, Graphic LCD Display, Chip On Glass LCD Display, LCD Display, LCD, LCD Module.

Genyu's graphic COG LCD Display has a wide range of applications, household appliances, industrial equipment. Graphic LCD Screen from Genyu factory. our large selection of Graphic LCD Display for applications.
We have an extensive range of LCD graphic display with various backlight and LCD type combination.

Genyu can recommend similar LCD displays according to your requirements, or customize LCD according to your requirements! Please share with us your requirements for LCD!

1>> Customizable according to client's requirement
2>>Monochrome Custom-made LCD Module in TN, HTN, STN, FSTN, TNVA-LCD Screen.
3>>Available for different modes such as Yellow-Green, Blue, Black, Gray color
4>>Customizable for the total module including new size, backlight, color, PCB circuit board, connection mode, PIN No. etc.

We have thousands of 128*64 Dot LCD displays. Genyu can recommend similar LCDs according to your requirements. Genyu can customize LCD for you according to your requirements.
Please share with us your more requirements for LCD! Please contact Erica!

We have TN or STN or FSTN, VA LCD Yello-Green or Bule or Gray Color Display.

Custom TN LCD Panel, Custom Made LCD Screen, 7 segment LCM, COB LCD Module, 7 segment LCD Modules<br>The segment LCD display content is fixed. It is usually composed of 7 segments and is used to display the numbers 0~9. The display content is basically a number. The segment code LCD has low requirements on the main control.

Segment LCD Modules are used in household power supplies, chargers, machines, instrumentation, medical, instrumentation, fuel dispenser counting display, electricity, meters, instruments, fax machines, POS, etc

OLED Display, Monochrome OLED, OLED Module, Dot matrix OLED display, Graphic OLED displays

we have 0.42" 0.49" 0.66" 0.69" 0.84" 0.87" 0.91" 0.96" 1.3" 1.54" 2.08" 2.23" 2.42inch OLED Display

Monochrome OLED Display modules are self- emitting without backlight so it makes OLED modules slimmer and lower power consumption. Genyu has many OLED displays in-stock and ready to ship today! Genyu is a professional OLED Display Supplier.

LCD Character Display, Character LCD Display Modules,16x2 characters, 20x4 characters, 1602A LCD.

Genyu produce and sell character LCD module. Also we do customized LCD module. including 8x1 characters, 8x2 characters,16x1 characters, 16x2 characters, 16x4 characters, 20x4 characters plus many more

Genyu's character LCD module for industrial and consumer's applications including entrance guard's&#65292;home radios, TAB, audio, aerial molds, access control displays, etc.

1. What's the total area and number of LCD's employed by Genyu?
Total area of production site is around 30,000m2; Over 800 personnel in various LCD/LCM Divisions.

2. How does your factory do regarding quality control?
Quality is the priority. We always attach great importance to quality controlling from the start to end.Our factory has gained ISO9001, RoHS, CE certification.

3. What's the MOQ?
For standard model, no strict limits; For customized model, MOQ depends on LCD size

4. What's the lead time of your LCD product?
For standard models, we always have stock or 1~2weeks; 5~6weeks for customized model

5. Can I have a samples?

Genyu can provide you with samples. Free ship cost in China, We have a lot of standard LCD screens, we can recommend LCD for you according to your requirements. Please share your requirements with us.

Custom LCD usually free 5-8 samples.

6. Can I get customize LCD Display?

For sure that OEM service is availiable. Custom LCD usually free 5-8 samples.

Genyu is a factory with 20 years of LCD production experience in China. We can customize LCD, LCM, B/L and FPC, We produce LCD of TN, HTN, STN ,FSTN VA/BTN, LCD Display and touch panel.

7.What can you buy from Genyu company?

LCD Display, AMOLED Display,OLED Display, TFT LCD, Backlight,

Custom LCD, COG LCD, COB LCD Module, TFT LCD Module, Graphic LCD display, Segment lcd. 128x64 LCD.

8.Can I get technical support for LCD?
We can provide LCD technical drawings, driver IC data, initialization codes and technical support from our engineers.

9: Where is your factory located? How can I visit there?

We have two factories, one is in Shenzhen, the other in JiangXi Province. Welcome to visit our factory. We could pick you up in Shenzhen Bao'an Airport, or High-way Shenzhen North station.
