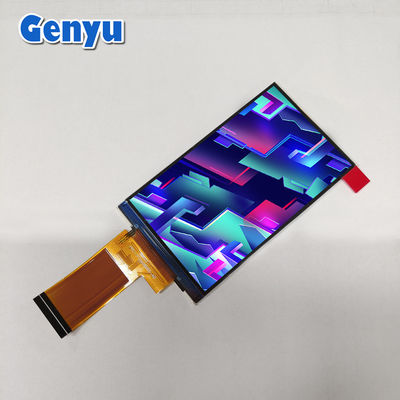

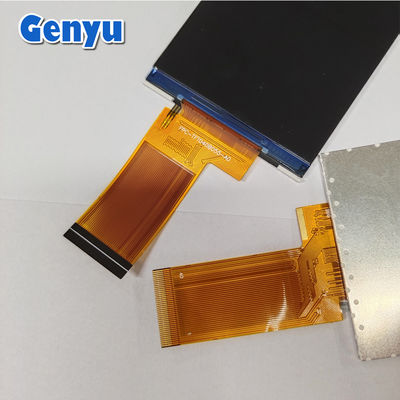

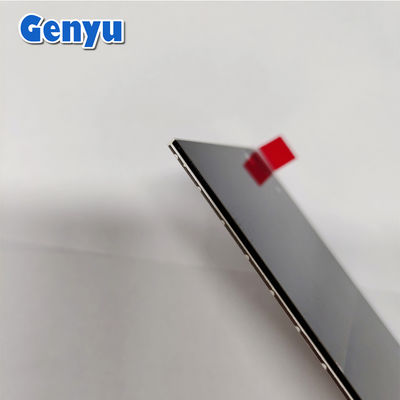

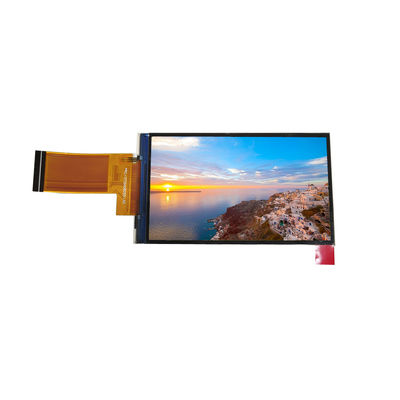

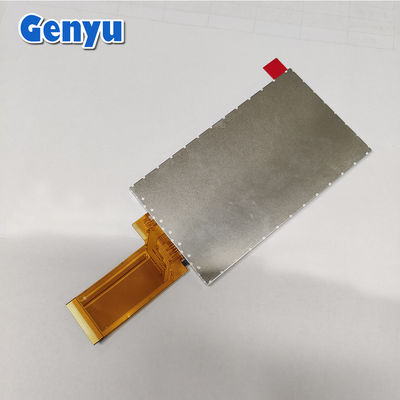

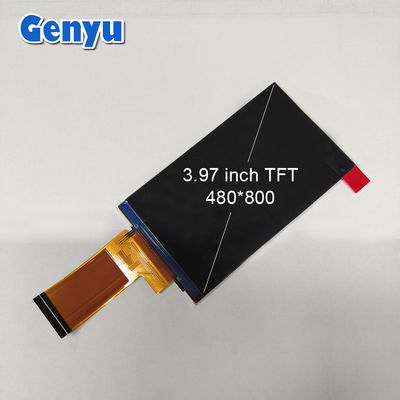

Genyu 3.97" Screen GC9503 Driver 480x800 Dots RGB SPI Interface 40 Pin FPC 4 Inch Display Size TFT LCD Display Modules

Marka Adı:	Genyu
Adedi:	1000 parça
fiyat:	$5.25/pieces 1000-4999 pieces

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Guangdong, Çin

Tip:

TFT

Ekran boyutu:

4 inç

Tedarikçi Türü:

üretici

Arka Işık Türü:

Çözünürlük:

Parlaklık:

Çalışma sıcaklığı:

Marka:

Ekran tipi:

Montaj türü:

Ekran Boyutu:

İletişim arayüzü:

Sürücü ic:

Panel boyutu:

4 inç

Ekran tipi:

480 RGB*800 nokta

Yönü Görüntüle:

Özgür

Sürücü ic:

GC9503CV

Arka ışık:

8 LED, Beyaz

Arayüz türü:

RGB, seri

Modül boyutu:

55.44 (h) x96.17 (v) x2.30 (d) mm

Aktif alan:

51.84x86.40 mm

Çalışma sıcaklığı:

-20 ~+70 ℃

Parlaklık:

300 Cd/m^2

Vurgulamak:

Genyu LCD Display Modules

SPI Interface LCD Display Modules

480x800 Dots LCD Display Modules

Ürün Tanımı

Genyu 3.97" Screen GC9503 driver 480x800 dots RGB+SPI Interface 40 pin FPC 4 Inch TFT LCD Display Modules

LCD Parameters

NO.	ITEM	SPECIFICATIONS
1	Product Name	4 inch Color TFT LCD Display
2	LCD Type	IPS
3	Resolution	480 RGBx800 DOTS
4	Display Mode	Normal Black
5	Operating Temperature	-20~+70℃
6	Storage Temperature	-30~+80℃
7	Luminance	300 cd/m2
8	FPC Connector	40 pins, ZIF type
9	Driver IC(COG)	GC9503CV
10	Interface	RGB, SPI, MIPI
11	Pixel Arrangement	RGB-stripe
12	Backlight	8 LEDs, White
13	Contrast Ratio	800

Genyu 3.97" Screen GC9503 Driver 480x800 Dots RGB SPI Interface 40 Pin FPC 4 Inch Display Size TFT LCD Display Modules 1

Genyu 3.97" Screen GC9503 Driver 480x800 Dots RGB SPI Interface 40 Pin FPC 4 Inch Display Size TFT LCD Display Modules 2

Company Information

Genyu 3.97" Screen GC9503 Driver 480x800 Dots RGB SPI Interface 40 Pin FPC 4 Inch Display Size TFT LCD Display Modules 9

Genyu 3.97" Screen GC9503 Driver 480x800 Dots RGB SPI Interface 40 Pin FPC 4 Inch Display Size TFT LCD Display Modules 10

Genyu 3.97" Screen GC9503 Driver 480x800 Dots RGB SPI Interface 40 Pin FPC 4 Inch Display Size TFT LCD Display Modules 11

Genyu 3.97" Screen GC9503 Driver 480x800 Dots RGB SPI Interface 40 Pin FPC 4 Inch Display Size TFT LCD Display Modules 12

Our Services

Genyu Technology (H K) Limited
Shen Zhen Genyu Optical Co.,Ltd

1. All products are being sent in accord with the real goods. When the clients purchase, we will provide detailed instructions and procedures. And if you need technical support in the development process, we can provide it anytime.

2. Good quality and credit is the soul of our company. Before shipment, we will guarantee that the products will be done the aging test and 100% of the visual and electric logging.

3. When the product upgrades, we will notify the related clients in advance, and the upgrading product can be perfectly compatible with the old ones.

4. The warranty period of the product is 12 months.

Genyu 3.97" Screen GC9503 Driver 480x800 Dots RGB SPI Interface 40 Pin FPC 4 Inch Display Size TFT LCD Display Modules 13

Genyu 3.97" Screen GC9503 Driver 480x800 Dots RGB SPI Interface 40 Pin FPC 4 Inch Display Size TFT LCD Display Modules 14

Packaging & Shipping

Payment
T/T, Western Union. Paypal and etc...

Delivery
Items will be shipped within 3 working days after payment is received.

By DHL/UPS/FedEx: about 5-7 working days.
By EMS/POSTNL: about 15-20 working days.

Packaging

1. Electrostatic Bag/ Anti-static Trays/ Plastic Pallet/ Air Bubble Film...

2. Suitable Carton Boxes.

The packing is able to withstand rough handling.

Genyu 3.97" Screen GC9503 Driver 480x800 Dots RGB SPI Interface 40 Pin FPC 4 Inch Display Size TFT LCD Display Modules 15

FAQ1

1. Q: Are you a manufactory or trade company?

A. We are a factory located in Shenzhen and Jiangxi, which specializes in TN, HTN, STN, FSTN, VA monochrome LCD, Micro OLED Screen, Color TFT Display Panels, LED Backlights, and LCD Modules.

2. Q: Will you offer a free sample?

A: For the first cooperation, samples will be charged, and the amount will be returned at the mass order stage.

In regular cooperation, samples can be free.

3. Q: What is the delivery time?

A: For sample order: 2-3 weeks. For mass production: 4-6 weeks.

4. Q: Can you custom the LCD or touch screen for me?

A: Yes, we can provide custom services.

For the LCD display, backlight brightness and FPC cable can be customized.

For the touch screen, we can customize the whole touch panel, such as the color, shape, cover thickness, and so on according to the customer's requirements.

5. Q: Which applications your products are mainly used for?

A: Embedded system, Intercom system, Biometrix, HMI, Smart home, Robert, Hand-held PDA, Aftermarket automotive and etc.
